Sime’s integrated heat pump and boiler brings Revolution to renewables sector!

The Murelle Revolution 30 is the first completely integrated boiler and heat pump in a single cased product.  Using an ErP A++ 30 kW Murelle boiler and completely sealed 4kW output heat pump, the Murelle Revolution 30 is a single compact unit that can be installed by any registered Gas Safe installer in a single installation process, without requiring an additional F-gas-registered installer to be present.

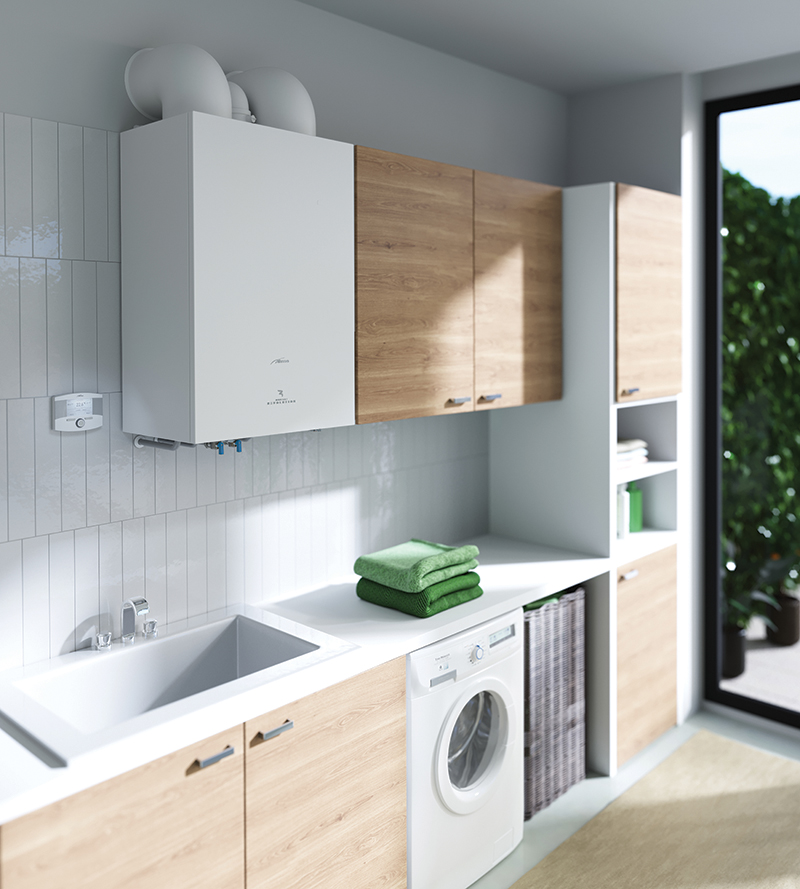

The unique Murelle Revolution 30 should be installed inside and hung on the wall like a conventional boiler.  The Revolution provides heat and hot water, achieving an average seasonal heating performance of 134%, granting A++ energy efficiency, according to the ErP Ecodesign Regulation.

How it works

The boiler and heat pump work in tandem, with the heat pump operating first, as this makes the largest contribution to the Murelle Revolution’s energy efficiency.  When the external temperature is higher than its minimum set value (default -7°C) the heat pump and the boiler will be activated in quick succession. When the set point is reached, the boiler will start to adjust power until the heat requirement is attained and then both of the generators will be extinguished.  If the external temperature is higher than 7°C (value can be re-set), only the heat pump will be activated. The boiler will be activated only when the desired temperature is not achieved by the heat pump on its own.

Technical description

Heat carrier fluid receives heat from air taken from outside into the main evaporator.  Once inside the evaporator, this heat carrier fluid comes into contact with exhaust gases from the boiler.  The compressor compresses the fluid and the heat is transferred via the plate-type condenser/exchanger to the water returning from the central heating system.  The boiler’s heat exchanger integrates the residual heating requirements.

About Sime

Sime domestic and commercial boilers deliver intelligent and environmentally efficient heating and hot water solutions.  With a proven reputation for quality, reliability and performance, Sime incorporates the stylish design and innovative engineering, synonymous with its Italian heritage.  Manufactured using the most advanced production systems and the highest quality brass and stainless steel components, Sime boilers are compact, lightweight and easy to install and come with two, five and ten year warranties.

For further information visit: www.sime.co.uk or call:  0345 901 1114.
